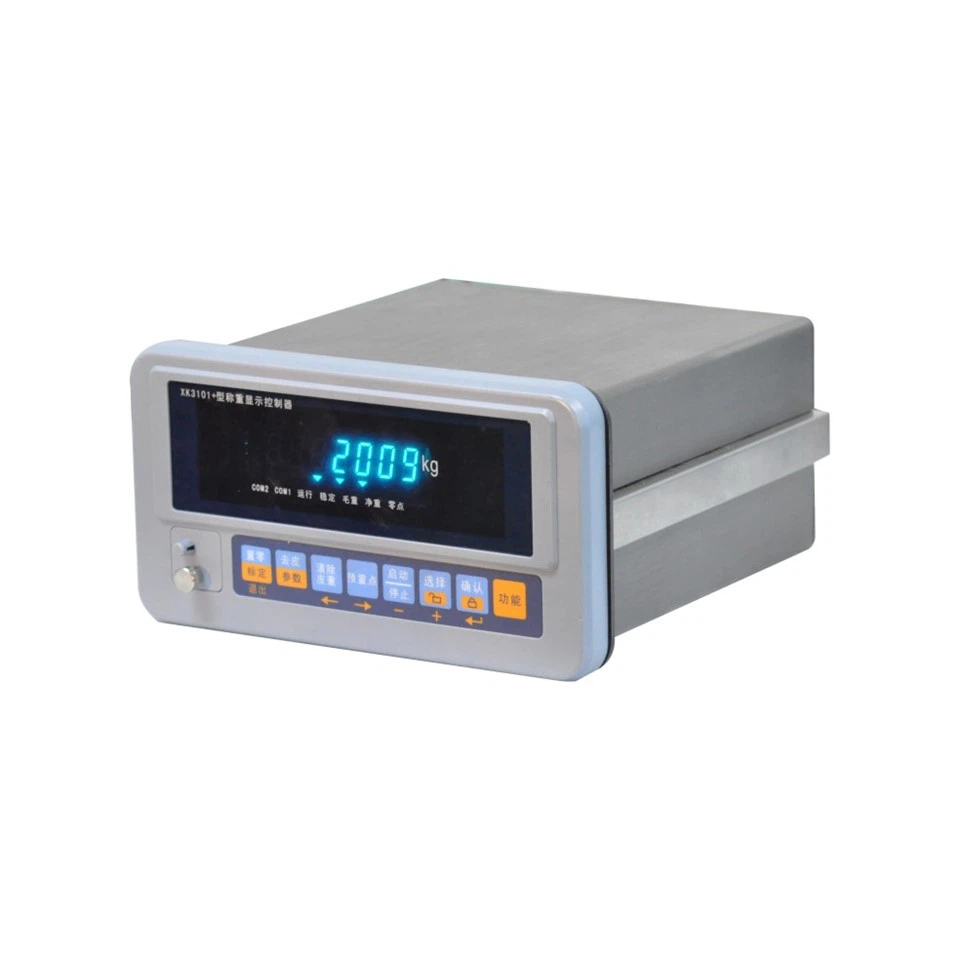

Xk3101

Power supply:

220VAC

Load cell excitation voltage:

DC5V, driving capability: 8 pcs with 350Ω; 16 pcs with 700Ω

Analog input voltage:

-1mV/V~3mV/V

Sensitivity:

1.5uV/d

Internal resolution

270000@2mV/V

Segment rate display

10000

A/D :

7.5 times/s, 15times/s, 25times/s, 50times/s

Nonlinearity:

<0.01%FS

Load cell port:

Pluggable terminal block

Serial output:

Electrical isolation half duplex RS232/ RS485

Baud rate:

1200, 2400, 4800, 9600, 19200

one start bit,7/8 data bit, one stop bit, none\odd\even parity optional

Status indication

Zero, gross weight, net weight, stability, running, COM1, COM2 (Profibus DP)

Keyboard:

8 membrane touch switch

Number I/O

6-way triode output, 4-way switch input

Operating temperature:

-10℃~ 40℃

Housing material:

Front panel: plastic; housing: aluminum

Weight:

2.3kg

Dimensions

A

215mm

E

190mm

B

115mm

F

208mm

C

100mm

G

218mm

D

205mm
