Rocker Weighing Module
Double rocker column
High sealing performance
OIML C3
Alloy steel, stainless steel
FEATURES:
●Capacity: 10-50t
●Double rocker column
●High sealing performance
●OIML C3
●Alloy steel, stainless steel
APPLICATION:
●Truck scale
●Hopper scale
●Axle-load scale
●Railway scale
|

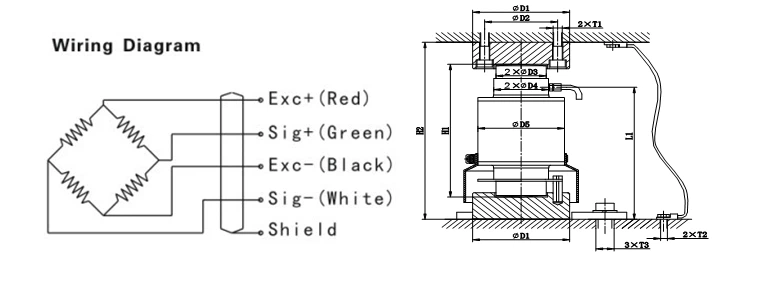

Outline Dimension |
|||||||||||
|
Rated capacity |
D1 |
D2 |
D3 |
D4 |
D5 |
H1 |
H2 |
L1 |
T1 |
T2 |
T3 |
|
10,15,20,25,30,40,50 |
83.5 |
64 |
44 |
48 |
76 |
150 |
200 |
149 |
M8 |
M8 |
M16 |
SPECIFICATION
Rated capacity: 10-50t
Rated output: 2.0±0.002mv/v
Combined error: ±0.03% F.S
Non-repeatability: ±0.02% F.S
Non-linearity: ±0.02% F.S
Hysteresis error: ±0.02% F.S
Zero balance: ±1% F.S
Creep error(30minutes): ±0.02% F.S
Temperature effect on zero: ±0.02% F.S
Temperature effect on output: ±0.02% F.S
Compensated temperature range: -10 ~ +40℃
Operating temperature range: -30 ~ +70℃
Maximum safe overload: 150% OF R.C
Ultimate safe overload: 200% OF R.C
Recommended Excitation: 10 ~ 12V DC
Maximum Excitation: 15V DC
Environment protection: IP68
Input impedance: 400±20Ω(ZSF);700±20Ω(ZSFY)
Output impedance: 352±3Ω(ZSF);703±5Ω(ZSFY)
Insulation resistance at 50V DC: ≥5000MΩ
Material: alloy steel(ZSF-A, ZSFY-A)；Stainless Steel(ZSF-ASS, ZSFY-ASS)
Cable: length 8m(10t),10m(15t),12m(20-25t),14m(30t),16m(40-50t); diameter φ5mm
