FSD7616-C

Type

Supply voltage

Measuring range

Zero bias voltage

sensitivity

FSD7616-020C3BFB

3.3 V

±20 A

1.65 V

66 mV/A

FSD7616-030C3BFB

3.3 V

±30 A

1.65 V

44 mV/A

FSD7616-040C3BFB

3.3 V

±40 A

1.65 V

33 mV/A

FSD7616-050C3BFB

3.3 V

±50 A

1.65 V

26.4 mV/A

FSD7616-065C3BFB

3.3 V

±65 A

1.65 V

20.31 mV/A

FSD7616-020C5BFB

5 V

±20 A

2.5 V

100 mV/A

FSD7616-030C5BFB

5 V

±30 A

2.5 V

66.67 mV/A

FSD7616-040C5BFB

5 V

±40 A

2.5 V

50 mV/A

FSD7616-050C5BFB

5 V

±50 A

2.5 V

40 mV/A

FSD7616-065C5BFB

5 V

±65 A

2.5 V

30.77 mV/A

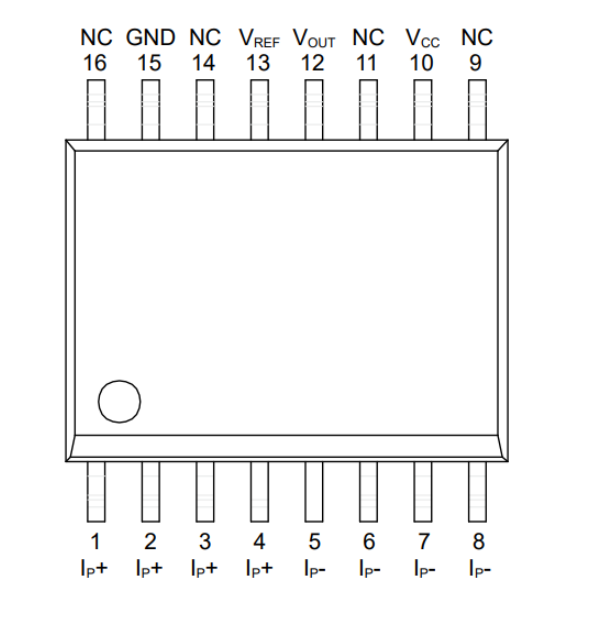

Serial number

Pin name

Feature

1

IP+

Current flowing in, positive direction

2

3

4

5

IP-

Current flowing out, negative direction

6

7

8

9

NC

No internal electrical connection, suspended by default

10

VCC

Power supply

11

NC

No internal electrical connection, suspended by default

12

VOUT

Analog voltage output

13

VREF

Reference voltage

14

NC

No internal electrical connection, suspended by default

15

GND

electrically

16

NC

No internal electrical connection, suspended by default
