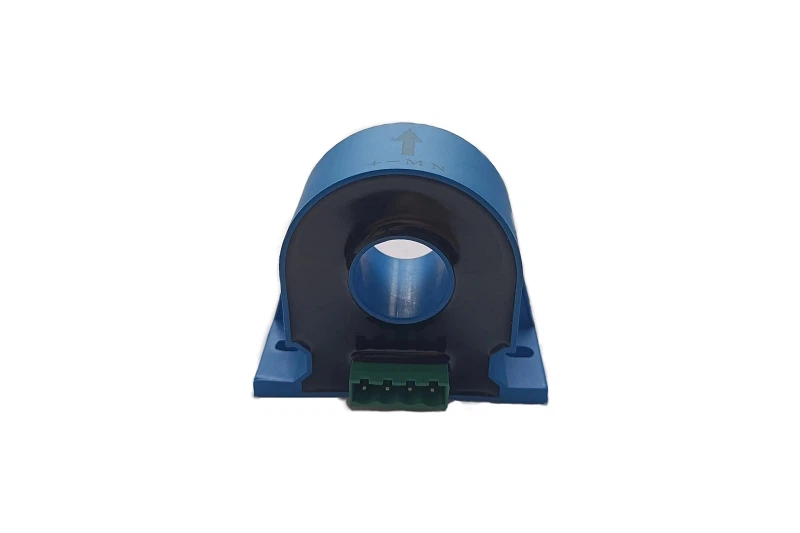

Closed Loop Hall Effect SC1BT

Part No.
Specific.

SC1BT-100A

SC1BT-200A

SC1BT-300A

unit

Primary Nominal current (Ipn)

±100

±200

±300

A

Primary current measuring range (Ipm)

0..±150

0..±300

0..±450

A

Secondary nominal output (Iout)

±100/±50

±200/±100

±300/±150

mA

Load resistor（RL）

@ Vc=±12V,150A RL≤100

@ Vc=±12V,300A RL≤37

@ Vc=±12V,450A RL≤15

Ω

Supply voltage (Vc)

±12～±15（±10%）

V

Current consumption (Ic)

@ Vc=±15V ，Ip=0 ≤20

mA

Overall accuracy（X）

@ Vc=±12～±15 ≤±0.5

%FS

Linearity error (ε)

@Ip=0-±Ipn ≤0.15

%FS

Electrical Offset current (Ioe)

@Ip=0 ,TA=25℃ ≤±0.2

mA

Hysteresis Offset current (Ioh)

@Ip=±Ipn-0 ≤±0.2

mA

Thermal drift of Ioe(TCIoe)

@ -40～+85℃ ≤±0.5

mA

Thermal drift of

Iout (TCIout)

@ -40～+85℃ ≤±0.6

mA

Response time (tr)

@50A/μS, 10%-90% ≤3

μS

Frequency bandwidth (BW)

@ -3dB DC～100

KHz

Ambient operating temperature（TA）

-40～+85

℃

Ambient storage temperature（TS）

-40～+90

℃

Mass（m）

117

g

Insulation voltage（Vd）

@ 50HZ，AC，1min 2.5

KV

Insulation resistance (Ris)

500

MΩ

Creepage distance（dCp）（dCp）

7.2

mm

Clearance distance（dCi）

7.2

mm
