Stainless Steel Beam Load Cell CPS-A/ASS
FEATURES:
●Capacity: 10kg to 500kg
●OIML C3 Certificate
●Stainless steel, Alloy steel
APPLICATION:
●Belt scales
●Hopper Scales
|

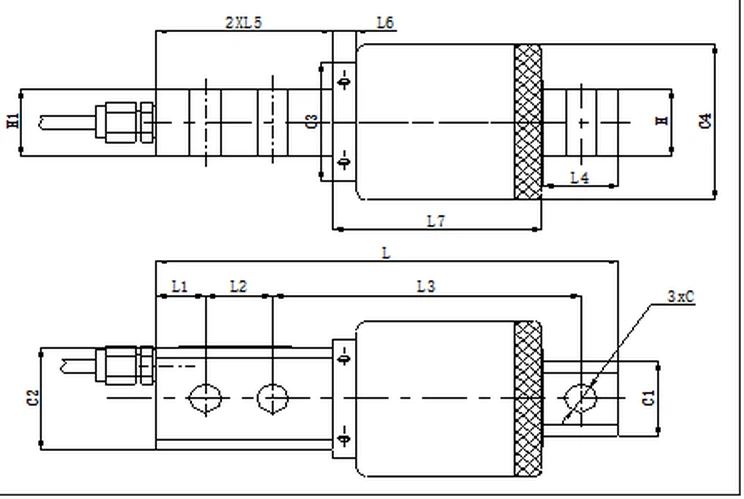

Outline Dimension |
|||||||||||||||
|
Rated capacity |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
H |
H1 |
C |
C1 |
C2 |
C3 |
C4 |
|
10~250 |
123 |
13 |
18 |
82 |
20 |
47 |
6 |
55.7 |
20 |
20 |
Φ8.2 |
Φ23 |
Φ31 |
Φ36 |
Φ47 |
|
300~500 |
123 |
10 |
82 |
18 |
20 |
44 |
6 |
55.7 |
20 |
20 |
Φ10.2 |
Φ23 |
Φ31 |
Φ36 |
Φ47 |
SPECIFICATION:
Rated capacity: 10kg to 500kg
Rated output:2.0±0.002mv/v
Combined error： C3
Non-repeatability：±0.02% F.S
Non-linearity：±0.02% F.S
Hysteresis error：±0.02% F.S
Zero balance: ±1% F.S
Creep error(30minutes): ±0.02% F.S
Temperature effect on zero: ±0.02% F.S
Temperature effect on output: ±0.02% F.S
Compensated temperature range: -10 to +40℃
Operating temperature range: -30 to +70℃
Maximum safe overload；150% OF R.C
Ultimate safe overload；200% OF R.C
Recommended Excitation；10 to 12V DC
Maximum Excitation；15V DC
Environment protection: IP68
Input impedance: 400±20Ω
Output impedance: 352±3Ω
Insulation resistance at 50V DC: ≥5000MΩ
Material: nickel-plated alloy steel/ stainless steel
Cable length: 3meter, diameter 5mm
