S Beam Load Cell

FEATURES:

●Capacity: 20kg-10t

●Forced by threaded connection

●High accuracy

●Alloy steel, stainless steel





APPLICATION:

●Testing machine

●Crane scale

●Packing scale

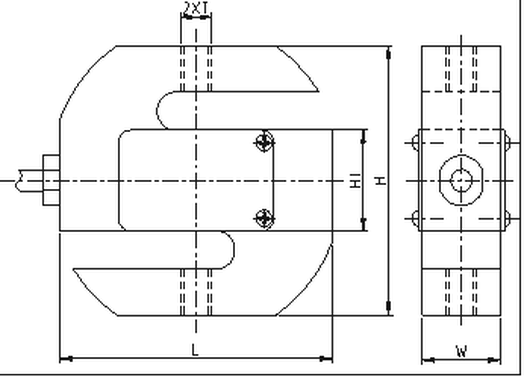

Outline Dimension
Rated capacity	L	W	H	H1	T
20kg~150kg	70	12	64	24	M8
200kg~500kg	70	20	64	24	M12
700kg~1t	70	25	64	24	M12
1.2t~5t	88	32	90	38	M20
7.5t	88	40	90	38	M24
10t	110	50	110	46	M30X2





SPECIFICATION

Rated capacity: 20kg-10t

Rated output:2.0±0.003mv/v,1.8±0.003mv/v(10t)

Accuracy class: 0.03

Non-linearity: ±0.03% F.S

Hysteresis error: ±0.03% F.S

Non-repeatability: ±0.02% F.S

Zero balance: ±1% F.S

Creep error(30minutes): ±0.03% F.S

Temperature effect on zero: ±0.02% F.S

Temperature effect on output: ±0.02% F.S

Compensated temperature range: -10 ~ +40℃

Operating temperature range: -30 ~ +70℃

Maximum safe overload: 150% OF R.C

Ultimate safe overload: 200% OF R.C

Recommended Excitation: 10 ~ 12V DC

Maximum Excitation: 15V DC

Environment protection: IP65(20kg-1t);IP67(1.2-10t)

Input impedance: 400±20Ω

Output impedance: 352±3Ω

Insulation resistance at 50V DC: ≥5000MΩ

Material: alloy steel

Cable : length 2.6m, diameter 5mm(20kg-1t);length 3m, diameter 6mm(1.2-7.5t); length 3m, diameter 5mm(10t)
