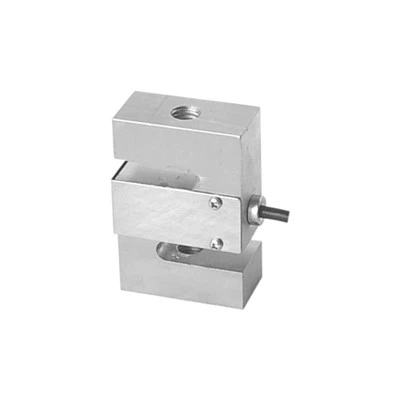

Keli OIML S Beam Load Cell

FEATURES:

●Capacity: 50kg-5t

●Threaded connection

●High accuracy

●OIML C3 approval (DEE)

●Alloy steel,stainless steel



APPLICATION:

●Testing machine

●Crane scale

●Packing scale

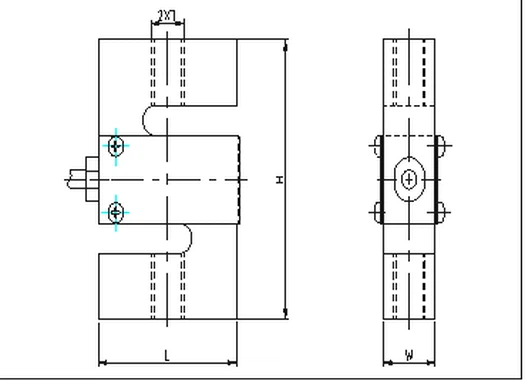

Outline Dimension
Rated capacity	L	H	W	T
50kg~750kg	51	76.2	19.1	M12X1.75
1t	51	76.2	25.4	M12X1.75
1.2t~5t	76.2	100.4	38.1	M20x1.5
10t	127	177.8	50.4	M30X2



SPECIFICATION

Rated capacity: 50kg-10t

Rated output:2.0±0.003mv/v(DEE); 3.0±0.003mv/v(DEF)

Accuracy class: 0.03

Non-linearity: ±0.03% F.S

Hysteresis error: ±0.03% F.S

Non-repeatability: ±0.02% F.S

Zero balance: ±1% F.S

Creep error(30minutes): ±0.03% F.S

Temperature effect on zero: ±0.02% F.S

Temperature effect on output: ±0.02% F.S

Compensated temperature range: -10~ +40℃

Operating temperature range: -30 ~+70℃

Maximum safe overload: 150% OF R.C

Ultimate safe overload: 180% OF R.C

Recommended Excitation: 10 ~ 12V DC

Maximum Excitation: 15V DC

Environment protection: IP65(50kg-1t); IP68(1.2-10t)

Input impedance: 400±20Ω

Output impedance: 352±3Ω

Insulation resistance at 50V DC: ≥500
