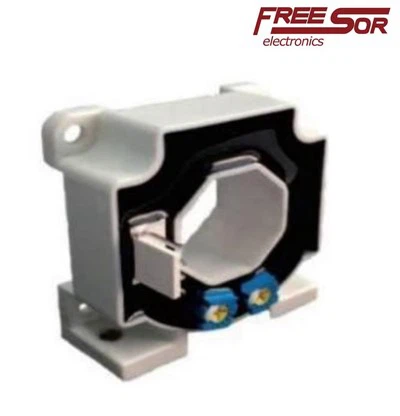

FS5000HC
应用霍尔效应开环原理的电流传感器,能在电隔离条件下测量直流,交流,脉冲以及各种不规则波形的电流.
Open loop current sensor based on the principle of Hall-effect It can be used for measuring AC,DC,pulsed and
mixed current.
|
电参数/Electrical characteristics |
|||||||
|
型号 Type |
FS3000HC |
FS7500HC |
FS10000HC |
FS15000HC |
FS20000HC |
||
|
IPN |
原边额定输入电流 Primary nominal input current |
3000 |
7500 |
10000 |
15000 |
20000 |
A |
|
IP |
原边电流测量范围 Measuring range of primary current |
0～±3600 |
0～±9000 |
0～±12000 |
0～±18000 |
0～±24000 |
A |
|
VOUT |
副边额定输出电压 Nominal output voltage |
4±1% |
V |
||||
|
VC |
电源电压 Supply voltage |
±12～±15(+5%) |
V |
||||
|
IC |
电流消耗 Current consumption |
Vc=±15V <50 |
mA |
||||
|
Vd |
绝缘电压 Insulation voltage |
在原边与副边电路之间6KV有效值/50Hz/1分钟 6KV RMS /50Hz/1 min between primary and secondary side circuits |
|||||
|
εL |
线性度 Linearity |
<1 |
%FS |
||||
|
VO |
零点失调电压 Offset voltage |
TA=25℃ <±1 |
mV |
||||
|
VOM |
磁失调电压 Residual voltage |
IPN→0 <±40 |
mV |
||||
|
VOT |
失调电压温漂 Thermal drift of V0 |
IP=0 TA=-25～+85℃ 〈±1 |
mV/℃ |
||||
|
Tr |
响应时间 Response time |
<10 |
μs |
||||
|
f |
频带宽度(-3dB) Frequency Bandwidth (-3dB) |
DC～3 |
kHz |
||||
|
TA |
工作环境温度 Ambient operating temperature |
-40～+85 |
℃ |
||||
|
TS |
贮存环境温度 Ambient storage temperature |
-40～+100 |
℃ |
||||
|
标准 Standard |
GI/FS-0105 |
||||||
外形尺寸(mm)/Dimensions of drawing(mm)
引脚输出：1,+15V 2,-15V 3,Vout 4,0V(电源地) OFS:零点调节 GIN:幅度调节
Elucidation:1:+15V 2:-15V 3:Vout 4:0V(GND) OFS:Zero adjustment GIN:Gain adjustment
使用说明/Remarks
1,错误的接线可能导致传感器损坏.传感器通电后,当被测电流从传感器箭头方向穿过,即可在输出端测得同相电压值.Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.
2,引出接线使用屏蔽护套线时,屏蔽护套线两端地线与屏蔽层相连接,以防止电磁干扰.
When the shielded sheath cable is used in the lead-out cable, the ground wire at both ends of the shielded sheath cable is connected to
the shielded layer to prevent electromagnetic interference.
