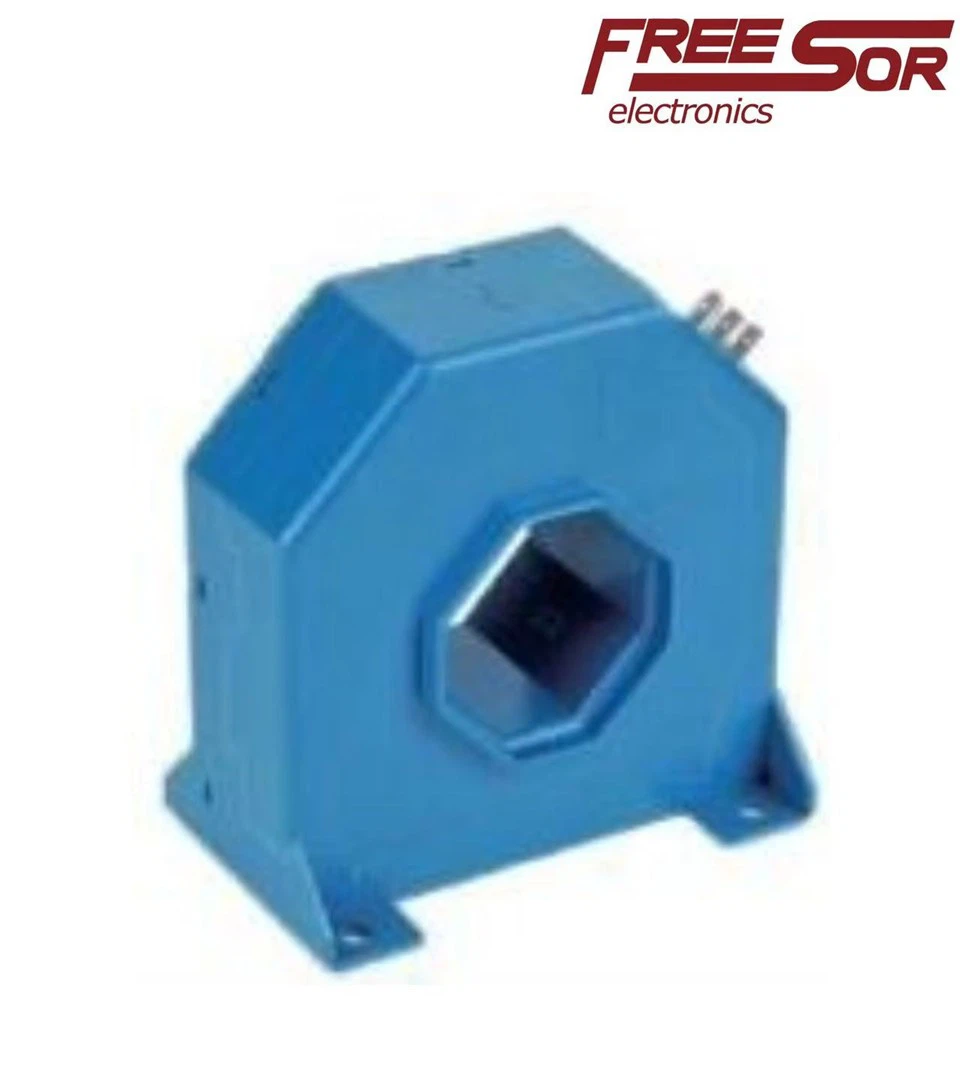

FSM2005S
应用霍尔效应闭环原理的电流传感器,能在电隔离条件下测量直流,交流,脉冲以及各种不规则波形的电流.
The current sensor using the closed-loop principle of Hall effect can measure DC, AC, pulse and various irregularities under the condition of electrical isolation wave form of current.
|
电参数/Electrical characteristics |
|||||
|
型号 Type |
FSM2005S |
||||
|
Ipn |
原边额定输入电流 Primary nominal input current |
±2000 |
A |
||
|
Ip |
原边电流测量范围 Measuring range of primary current |
±3000 |
A |
||
|
IsN |
副边额定输出电流 Secondary nominal output current |
±400 |
mA |
||
|
RM |
测量电阻范围 Measuring resistance |
With±15V With±15V |
@lp @lPM |
Max7Ω max4Ω |
|
|
With±24V @lp With±24V @lPM |
max 28Ω max 13Ω |
||||
|
Vc |
电源电压 Supply voltage |
±15~±24(±5%) |
V |
||
|
Ic |
电流消耗 Current consumption |
Vc =±15V 45mA±ls |
mA |
||
|
Va |
绝缘电压 Insulation voltage |
在原边与副边电路之间6KV有效值/50Hz/1分钟 |
|||
|
e |
线性度 Linearity |
<0.1 |
%FS |
||
|
lo |
零点失调电流 Zero offset current |
TA=25℃ <±0.2 |
mA |
||
|
loT |
零点失调电流温漂 Thermal drift of I0 |
I→0 <±0.5 |
mA |
||
|
Tr |
响应时间 Response time |
≤1 |
μs |
||
|
f |
频带宽度(-3dB) Frequency bandwidth(-3dB) |
DC～150 |
kHz |
||
|
TA |
工作环境温度 Ambient operating temperature |
-40～+125 |
℃ |
||
|
Ts |
贮存环境温度 Ambient storage temperature |
-40～+150 |
℃ |
||
|
标准 Standard |
GI/FS-0105 |
||||
外 形 尺 寸 ( m m )/Dimensions of drawing(mm)
使用说明/Remarks
1.错误的接线可能导致传感器损坏.传感器通电后,当被测电流从传感器箭头方向穿过,即可在输出端测得同相电压值.Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.
2.传感器的输出幅度可根据用户需求进行适当的调节.
The output amplitude of the sensor can be adjusted according to the user's needs.
3.可按用户需求定制不同额定输入电流和输出电压的传感器.
Sensors with different rated input current and output voltage can be customized according to user requirements.
